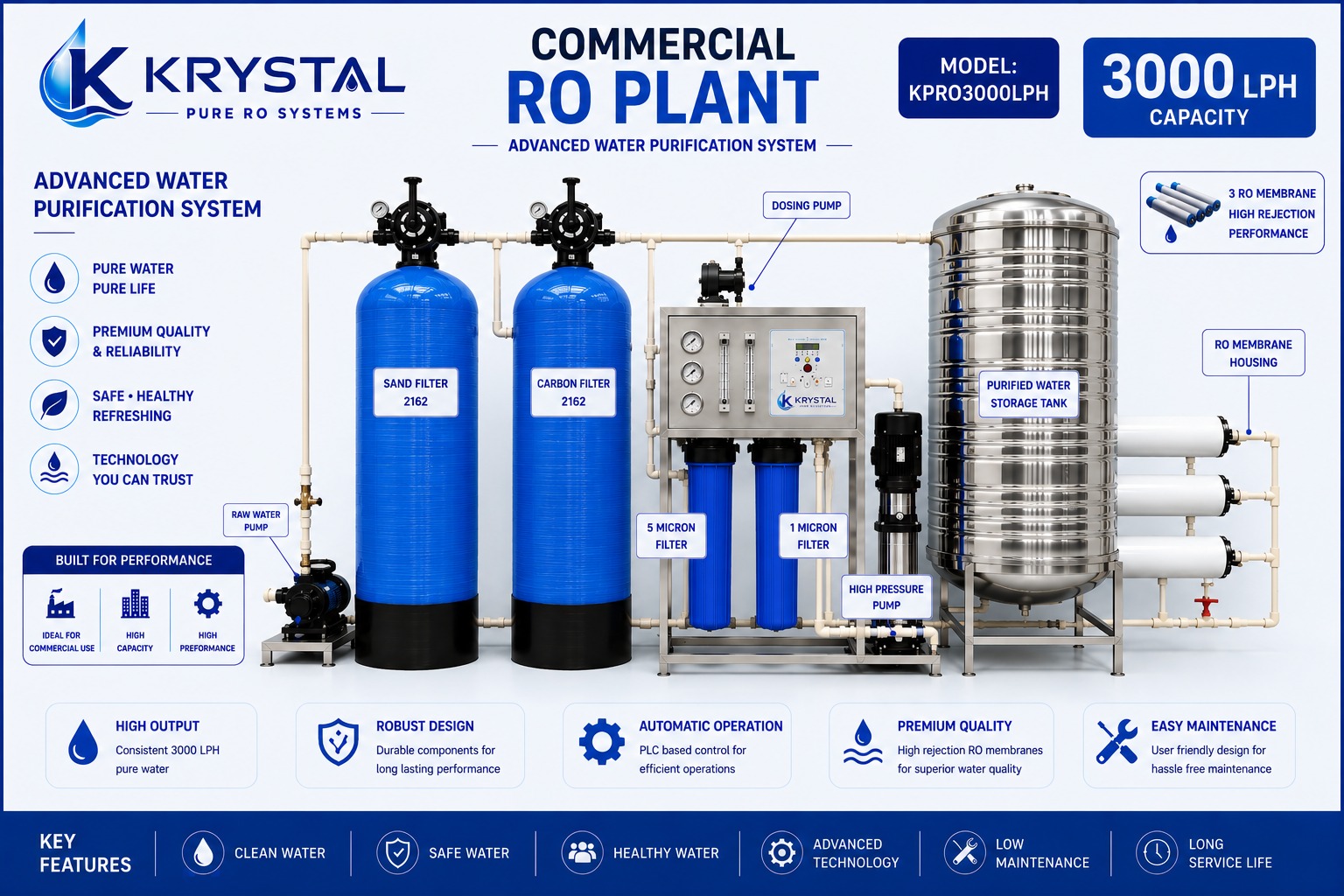

KPRO 3000 LPH Commercial RO Plant
Advanced Water Purification System
The KPRO 3000 LPH Commercial RO Plant from Krystal Pure RO Systems is a high-performance industrial water purification system engineered to produce 3,000 liters of purified water per hour. Designed with advanced Reverse Osmosis technology, automatic PLC-based controls, multi-stage filtration, and premium industrial components, this plant delivers exceptional water quality, reliability, and operational efficiency.
The KPRO 3000 LPH is ideal for industries, commercial establishments, healthcare facilities, educational institutions, and large-scale water treatment applications where continuous production of purified water is essential.
Technical Specifications
| Parameter | Specification |
|---|---|
| Model | KPRO 3000 LPH |
| Production Capacity | 3,000 Liters Per Hour |
| Daily Production Capacity | Up to 72,000 Liters Per Day |
| Technology | Reverse Osmosis (RO) |
| Operation | Fully Automatic PLC Controlled |
| Pretreatment System | Sand Filter & Carbon Filter |
| Filter Size | FRP Vessel 2162 |
| Cartridge Filters | 5 Micron & 1 Micron |
| RO Membranes | 3 High Rejection RO Membranes |
| Membrane Housing | High Pressure FRP/SS Housing |
| Recovery Rate | Up to 65-70% |
| TDS Rejection | Up to 95-99% |
| Operating Pressure | 10-15 Bar |
| Power Supply | 415V AC, 3 Phase, 50 Hz |
| Product Water Tank | Food Grade Stainless Steel Tank |
| Frame Structure | Heavy Duty SS/MS Powder Coated Frame |
System Components
Raw Water Feed Pump
- Supplies feed water to pretreatment units.
- Maintains stable inlet pressure.
Sand Filter (FRP 2162)
- Removes suspended solids, dirt, turbidity, and sediments.
- Protects downstream equipment and membranes.
Activated Carbon Filter (FRP 2162)
- Eliminates chlorine, odor, color, and organic contaminants.
- Enhances membrane life and water quality.
Chemical Dosing System
- Prevents membrane scaling and fouling.
- Improves overall system performance.
5 Micron Cartridge Filter
- Removes fine suspended particles.
- Protects RO membranes from premature damage.
1 Micron Cartridge Filter
- Provides ultra-fine filtration.
- Improves membrane efficiency and purified water quality.
High Pressure Pump
- Delivers required pressure to RO membranes.
- Ensures maximum permeate production.
Triple RO Membrane System
- Equipped with 3 high-rejection membranes.
- Removes dissolved salts, heavy metals, bacteria, viruses, and contaminants.
- Delivers superior water quality and higher production rates.
Stainless Steel Purified Water Storage Tank
- Hygienic storage solution.
- Corrosion-resistant and food-grade construction.
Key Features
- ✔️ 3000 Liters Per Hour Water Production
- ✔️ 3 High-Rejection RO Membranes
- ✔️ Fully Automatic PLC Control Panel
- ✔️ Multi-Stage Advanced Filtration
- ✔️ Heavy Duty Industrial Construction
- ✔️ High Recovery & Low Water Wastage
- ✔️ Low Maintenance Design
- ✔️ Energy Efficient Operation
- ✔️ Stainless Steel Product Water Tank
- ✔️ Continuous 24x7 Operation Capability
Water Quality Performance
Removal Efficiency
- TDS Reduction: Up to 99%
- Bacteria Removal: >99%
- Virus Removal: >99%
- Heavy Metal Reduction: Excellent
- Chlorine Removal: Excellent
- Odor & Color Removal: Excellent
Product Water Quality
- Crystal Clear Appearance
- Improved Taste & Odor
- Safe for Drinking and Process Applications
- Consistent Water Quality Output
Applications
Industrial Applications
- Engineering Industries
- Textile Industries
- Pharmaceutical Plants
- Chemical Industries
- Electronics Manufacturing
Commercial Applications
- Hotels & Resorts
- Shopping Malls
- Corporate Offices
- Commercial Buildings
Healthcare Applications
- Hospitals
- Medical Facilities
- Diagnostic Centers
Educational Institutions
- Schools
- Colleges
- Universities
- Residential Campuses
Food & Beverage Industry
- Food Processing Units
- Beverage Plants
- Commercial Kitchens
- Bottling Plants
Advantages of KPRO 3000 LPH
High Capacity Production
Produces up to 72,000 liters of purified water per day for large-scale operations.
Advanced Filtration
Combination of Sand Filter, Carbon Filter, 5 Micron Filter, 1 Micron Filter, and Triple RO Membranes ensures superior water purification.
Automatic Operation
PLC-based controls provide reliable and user-friendly operation.
Cost Effective
Reduces dependence on packaged water and minimizes operating costs.
Long Service Life
Industrial-grade components ensure years of reliable performance.
